Arlon 3170 Series

Arlon Series 3170 is a premium cast vinyl overlaminate designed to protect printed graphics while providing excellent conformability. Its thin 35-micron facestock follows curves and contoured surfaces effectively, making it ideal for vehicle wraps, fleet graphics and intermediate signage.

Available in gloss and matte finishes, Series 3170 features a clear, permanent pressure-sensitive adhesive that helps preserve the appearance and performance of printed graphics. The film is designed for cold lamination, requiring no heat during application.

Series 3170 provides up to seven years of unprinted outdoor durability. It is also suitable for kiosks, point-of-purchase displays and other promotional graphics. This product is not designed for use as an optically clear window film.

Key Features

• Premium 35-micron cast vinyl overlaminate
• Available in gloss and matte finishes
• Thin facestock for enhanced conformability
• Protects printed vehicle and signage graphics
• Suitable for curved and contoured surfaces
• Clear, permanent pressure-sensitive adhesive
• Designed for cold lamination without heat
• Up to seven years of unprinted outdoor durability
• Not suitable as an optically clear window film

Recommended Applications

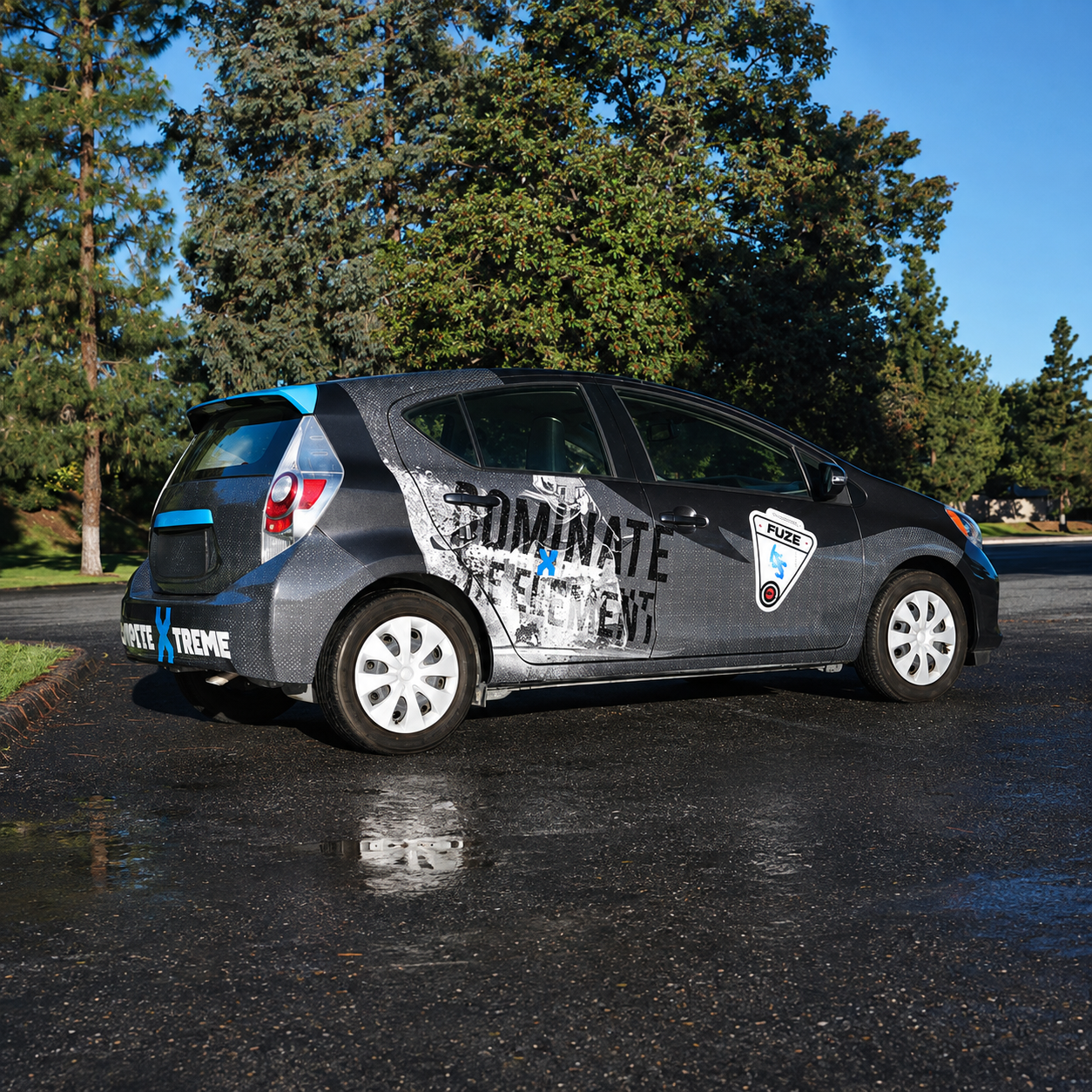

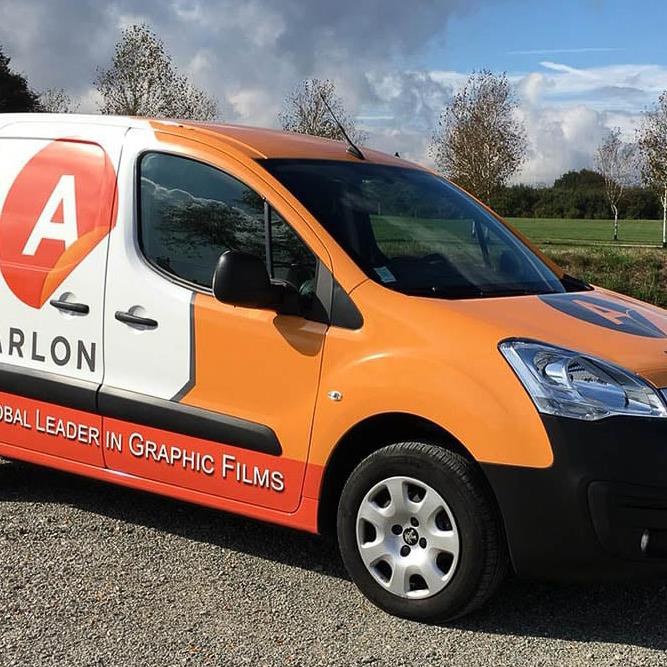

• Full and partial vehicle wraps
• Vehicle and fleet graphics
• Intermediate signage
• Kiosks and retail displays
• Point-of-purchase displays
• Printed promotional graphics

Recommended Arlon Films

• SLX+®
• SLX® Cast Wrap
• Fusion Wrap
• DPF 4600GLX and DPF 4600MLX
• DPF 4500GLX and DPF 4500MLX
• DPF 8000 Ultra Tack
• DPF 8200 High Tack
• DPF 8200X High Tack
• DPF 6100XLP
• DPF 6700
• DPF 2400XLP
• IllumiNITE Wrap®
• DPF 4400

Technical Specifications

• Face Film: 35-micron cast vinyl
• Finish: Gloss or matte
• Adhesive: Clear, permanent pressure-sensitive adhesive
• Release Liner: Kraft paper
• Unprinted Durability: Up to seven years
• Roll Widths: 1.37m and 1.52m
• Roll Length: 45.72m
• Application Method: Cold lamination
