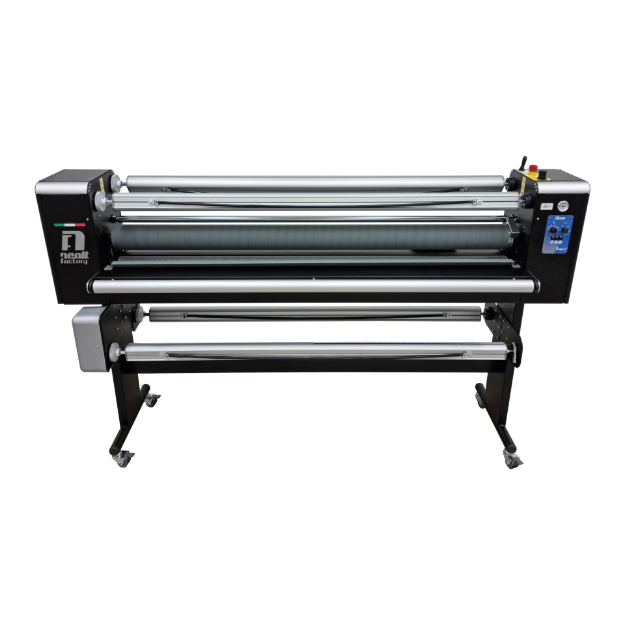

Neolt Laylam 1650 50°C

THE ULTIMATE ENTRY LEVEL LAMINATOR

The ultimate economical pneumatic laminator is finally available from Neolt Factory. Laylam technology range reduces machine Setup and does not require skilled personnel.
Compared to the laminators with electric pressure technology. The possibility of error is actually Hot rollers 50c is already included, available also the 120c model. Laylam the perfect combination of price and Italian manufacturing quality.

MAIN FEATURES

Eco-friendly
The air pressure system implies lower power consumption than electric motors.

Self-adaptive
The air pressure system with independent pistons adapts automatically to different thicknesses and to different materials, often not completely flat. The rollers simply adapt to the media surface in real time.

Flexible
It is possible to pre-define the pressure to be applied to each media. Once you have placed the material, it is always possible to adjust the pressure.

OPTIONS / ACCESSORIES
• Roll holder with clutch
• Rewinder roll

Datasheet

Dimensions - 215 x 45 x 140 cm
Max working width - 1650 mm
Max speed - 6 m/min
Max laminating thickness - 30 mm
Table depth included - 450 mm
Working table height - 920 mm
Net weight - 200 kg
Electrical requirements - 230v - 50Hz / 110v - 60Hz
Power consumption - 7.5 A - 1800W
